A custom clear epoxy formulation should be evaluated as an engineering and procurement project, not selected from appearance claims alone. Define the substrate pair, surface condition, bond-line or coating gap, application and cure process, optical requirement, loads, operating environment, packaging format, and qualification evidence required. Then ask the supplier to confirm whether it can develop or supply a suitable formulation, provide current TDS and SDS documents, produce representative samples, support agreed testing, and document the commercial conditions for repeat supply. A supplier’s general product range, such as an industrial epoxy resin range, provides context but does not by itself prove suitability for a specific assembly.
What a Custom Clear Epoxy Formulation Project Includes
First establish what material is actually being sourced. A clear epoxy may be intended for bonding, coating, casting, sealing, or encapsulation. These applications can impose different requirements for wetting, gap filling, flow, cure, handling, appearance, mechanical behavior, and inspection. A formulation suitable for a thin adhesive bond is not automatically suitable for a thick cast section or a protective coating.
Use the term custom precisely. It may mean selection from an existing product family, adjustment of a documented property, a package or process adaptation, or a new development project. Do not assume which of these services a supplier provides. Request a written capability statement identifying the application categories supported, the properties that may be adjusted, the development boundaries, the party responsible for testing, and the evidence available for each proposed material.
For bonding projects, compare the request with the supplier’s epoxy adhesive product category, while keeping the application brief specific to the actual joint. A category page can help orient the discussion; it cannot replace a current product-specific TDS, SDS, sample record, or validation plan.
Define the Technical Specification Before Requesting a Quote
A concise technical brief makes supplier responses comparable and exposes missing information before sampling. Include the following:
- Application: state whether the material will bond, coat, cast, seal, or encapsulate, and identify the part, joint, exposed surface, or cavity.
- Substrates: identify each material, coating, finish, insert, and mixed-material interface. Include porosity, roughness, surface energy where known, and whether surfaces are machined, molded, oxidized, painted, or previously treated.
- Preparation: describe cleaning, abrasion, blasting, plasma, primer, drying, and inspection steps permitted in production. Ask the supplier to identify any preparation assumed by its guidance.
- Geometry: provide bond-line or coating gap, overlap, edge condition, part dimensions, joint tolerances, and whether the material must fill a void or remain in a defined layer.

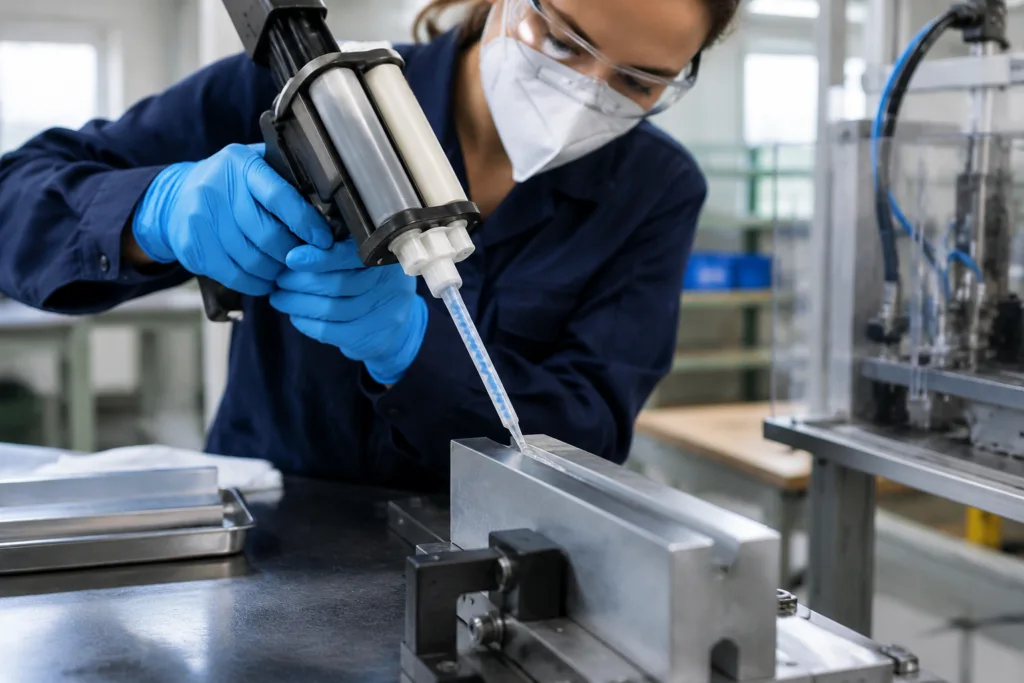

- Process: document dispensing or mixing equipment, component handling, working time required by the line, fixture or handling point, cure mechanism, cure temperature, post-cure capability, and throughput constraints.
- Performance: define clarity, color, haze, yellowing, adhesion, strength, flexibility, thermal behavior, electrical needs, chemical exposure, moisture, light exposure, and aging in measurable terms where those properties affect acceptance.
- Supply: state forecast volume, order pattern, package format, labeling, lot traceability, storage constraints, transport requirements, and internal documentation needed for approval.
Use acceptance criteria that match the real failure risks. For example, “clear” may need a defined inspection method, lighting condition, color limit, or haze measurement. “Chemical resistant” requires the chemical, concentration, contact mode, temperature, exposure duration, and pass criteria. Without those definitions, descriptive wording cannot support a reliable supplier comparison.
Supplier-Response Comparison Table
Use the following table as an RFQ control sheet. Require each supplier to identify what is confirmed, what remains conditional, who owns the next action, and what outcome is requested at each gate.
| Evaluation stage | Buyer provides | Supplier response field | Evidence or document to request | Responsible party | Approval outcome |
|---|---|---|---|---|---|
| Capability screen | Application category, substrates, process, appearance, and required evidence | Supported scope, development route, boundaries, assumptions, and information gaps | Written capability response and current technical literature | Supplier technical contact | Invite a technical review or close the request |
| Technical intake | Geometry, preparation, process window, environment, and production constraints | Proposed material route, unresolved risks, and conditions requiring confirmation | Current TDS, SDS, and written technical response | Buyer and supplier engineering teams | Authorize sample planning or revise the brief |
| Sample review | Representative parts or coupons, preparation method, and inspection criteria | Sample identity, revision, supplied instructions, and stated limitations | Sample record, TDS, SDS, and agreed trial protocol | Buyer application team | Run controlled trials or request a revised sample |
| Qualification | Loads, exposure conditions, process limits, and acceptance criteria | Test responsibilities, proposed methods, change-control terms, and evidence gaps | Test plan, conditions, results where available, and revision records | Buyer owns approval unless otherwise agreed | Approve, modify, or reject the defined formulation and process boundary |
| Commercial release | Forecast, package needs, order pattern, and purchasing controls | Package availability, quotation assumptions, supply conditions, and change-notification terms | Quotation, commercial conditions, labeling, lot information, and applicable supply documents | Procurement and supplier commercial contact | Release an order, hold for clarification, or discontinue evaluation |
Substrates, Surfaces, and Bond-Line Conditions
Substrate compatibility must be assessed using the actual material pair and surface condition. Contamination, porosity, roughness, oxide layers, release agents, moisture, and existing coatings can change wetting and adhesion. Joint gaps and tolerances also affect whether the material remains where applied and cures consistently. Ask for substrate-specific guidance and identify any primer or pretreatment requirement before selecting a sample.
Samples should represent production parts or a controlled substitute with the same relevant surface condition. Record cleaning, preparation, application amount, gap control, cure conditions, inspection method, and failures. A coupon result can support screening, but it does not establish production suitability when geometry, tolerances, process control, or environmental exposure differ. Ask the supplier to state which conclusions are supported by existing evidence and which require project testing.
Cure Mechanism and Production Process Window
Match the cure mechanism to available equipment and line conditions. Confirm mixing or dispensing requirements, component handling, working and fixture times, cure temperature, post-cure needs, part temperature limits, and the point at which the assembly can be inspected or moved. These conditions must come from controlled technical documentation for the proposed formulation.
When elevated-temperature service is part of the requirement, treat high-temperature epoxy options as a separate evaluation path rather than assuming that any clear epoxy has the required thermal capability. Validate the actual formulation, substrate pair, geometry, cure history, and exposure conditions before production approval.
Optical, Mechanical, Thermal, Electrical, and Environmental Requirements
Translate descriptive requests into acceptance criteria before comparing samples. “Clear” may refer to visual transparency, limited haze, a defined color range, or an appearance judged under agreed lighting. Specify the inspection method, viewing distance, substrate or test geometry, and permitted variation. If haze or luminous transmittance is relevant, record the selected method and reporting conditions rather than treating visual inspection as a complete optical qualification.
Define durability against the exposure that matters to the assembly. Chemical resistance should identify the chemical, concentration, contact mode, temperature, duration, cleaning cycle, and pass criteria. Moisture, light, thermal cycling, abrasion, impact, and aging requirements likewise need stated conditions. Avoid asking for “UV stable” or “yellowing resistant” without defining the light source, exposure period, measurement method, and acceptable change.
Mechanical, thermal, and electrical requirements should be tied to the joint or coating function. Identify loads, movement, flexibility, temperature range, heat excursions, insulation needs, dielectric requirements, and the consequences of cracking, delamination, discoloration, or loss of adhesion. A formulation that appears suitable in an unstrained sample may require a different assessment when the assembly experiences differential expansion, vibration, moisture, or repeated cleaning.
Keep product evidence separate from project assumptions. Request the current TDS and SDS for each proposed formulation, together with product-specific test methods and results where available. If required evidence is not available, assign a test owner and define the method, conditions, acceptance criteria, and reporting format before treating the property as an approval requirement.
Sampling, Qualification, and Change Control

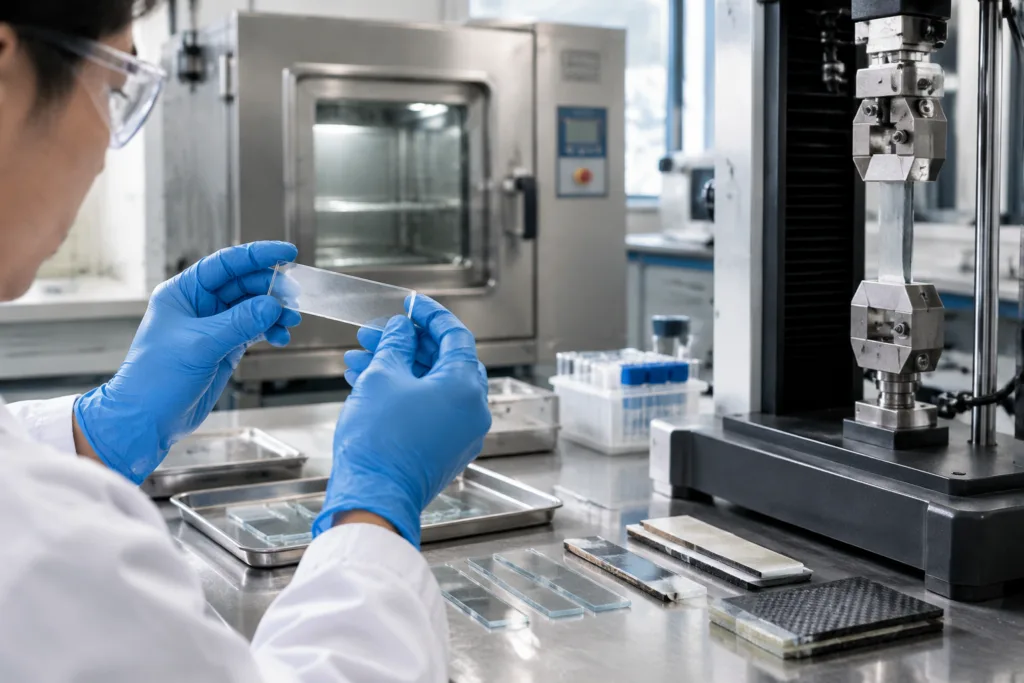

Use staged sampling. The 1st stage should establish whether the proposed material wets the actual substrates, can be applied with available equipment, and reaches the required appearance under the stated process. Record sample identity, revision, batch or lot information where supplied, substrate preparation, application method, gap or coating thickness, cure history, inspection conditions, and observed failures.
The next stage should use representative parts or controlled substitutes that reproduce relevant geometry and surface condition. Include process variation that the production line can realistically control. Agree in advance which tests will be performed, who supplies fixtures and specimens, how samples are retained, what constitutes failure, and how results will be reported. Screening data can support a decision to continue; it does not guarantee production approval or repeat-supply performance.
Before approval, document the qualification boundary. State the formulation revision, substrates, preparation method, process window, cure history, exposure conditions, inspection methods, and acceptance criteria covered by the decision. Any change to formulation, raw materials, package, label, manufacturing location, cure instructions, or documented limits should be handled under an agreed change-notification process. Confirm whether a new sample or partial requalification is required and record the decision owner.
Packaging, Documentation, and Supply Evaluation
Packaging is part of process suitability. Specify whether the material is dispensed from 1 package, paired components, cartridges, syringes, pails, or another format, but require the supplier to confirm what is currently available. Package size should match usage rate, storage controls, dispensing equipment, waste limits, and the interval between opening and use. The bulk clear epoxy sourcing discussion can help frame packaging questions, but current commercial documentation remains the controlling evidence for a specific formulation.
Procurement should request the current TDS, SDS, labels, lot-traceability information, storage and handling instructions, transport information, and any certificate or batch documentation applicable to the order. Confirm the document revision, issuing entity, language, and regions covered. EHS and regulatory reviewers should determine whether additional regional, transport, or workplace documentation is required before purchase.
Commercial review should cover package availability, minimum order quantity, lead time, forecast assumptions, sample and pilot charges where applicable, delivery terms, shelf-life information when documented, and repeat-order conditions. Do not publish or assume these values. Ask the supplier to state them in the quotation and identify which conditions are firm, estimated, or subject to review. For concrete or other specific substrates, use a dedicated concrete epoxy adhesive discussion only when the project actually requires that substrate and its associated preparation and exposure assessment.
Supplier Review Checklist and Next-Step Request
Require each supplier to return the same controlled response so procurement can compare capability rather than marketing language:
- Scope response: identify whether the request concerns bonding, coating, casting, sealing, encapsulation, or another defined use.
- Capability response: state whether the requested development or supply route is supported, what information is missing, and which properties or process requirements can be assessed.
- Evidence register: list current TDS and SDS documents, sample records, relevant test data, document revisions, and limitations on applying existing data to the proposed assembly.
- Sample proposal: specify sample identity, quantity if applicable, substrate or coupon requirements, trial conditions, handling instructions, and revision control.
- Validation proposal: identify test methods, acceptance criteria, responsibilities, fixtures, reporting format, and the process for investigating failures.
- Change and supply controls: describe lot traceability, change notification, packaging, storage, transport, repeat-supply assumptions, and commercial conditions.
- Decision status: mark each response as confirmed, conditional, unavailable, or requiring buyer information, with a named owner and next action.
Send substrate samples or representative coupons only with documented preparation and handling instructions. Ask the supplier to distinguish confirmed facts from recommendations that remain conditional on trials. That distinction keeps the RFQ useful for engineering approval, procurement comparison, and later production control. For a current project, contact the ZDS technical team with the substrate pair, process conditions, performance requirements, quantity, packaging needs, and validation plan for technical review.
Frequently Asked Questions
What information should I provide when requesting a custom clear epoxy formulation?
Provide the application, substrate pair, surface preparation, geometry, gap, application equipment, cure process, appearance criteria, service environment, qualification tests, volume, packaging, and documentation requirements.
How is a custom clear epoxy formulation qualified before production use?
Use representative samples and controlled trials, then test the defined properties under agreed conditions against documented acceptance criteria before approving the stated formulation and process boundary.
Can a custom clear epoxy be used for both bonding and coating?
Possibly, but suitability must be assessed separately because bonding and coating can require different wetting, gap, flow, cure, inspection, and durability criteria.
What technical documents should procurement request from an epoxy supplier?
Request the current TDS, SDS, labels, sample and revision records, relevant test data, storage and handling instructions, lot information, packaging details, and applicable commercial documentation.
How should packaging and repeat supply be specified for a custom epoxy project?
Specify package format, usage rate, dispensing equipment, storage controls, labeling, lot traceability, forecast, order pattern, minimum order information, lead time, and change-notification expectations.
